Continuous Fiber Laser (2μm Wavelength) BFSC 100-300M

We will respect your privacy rights and are committed to strictly protecting your personal information and other data.

100~300M

Continuous Fiber Laser (2um Wavelength)

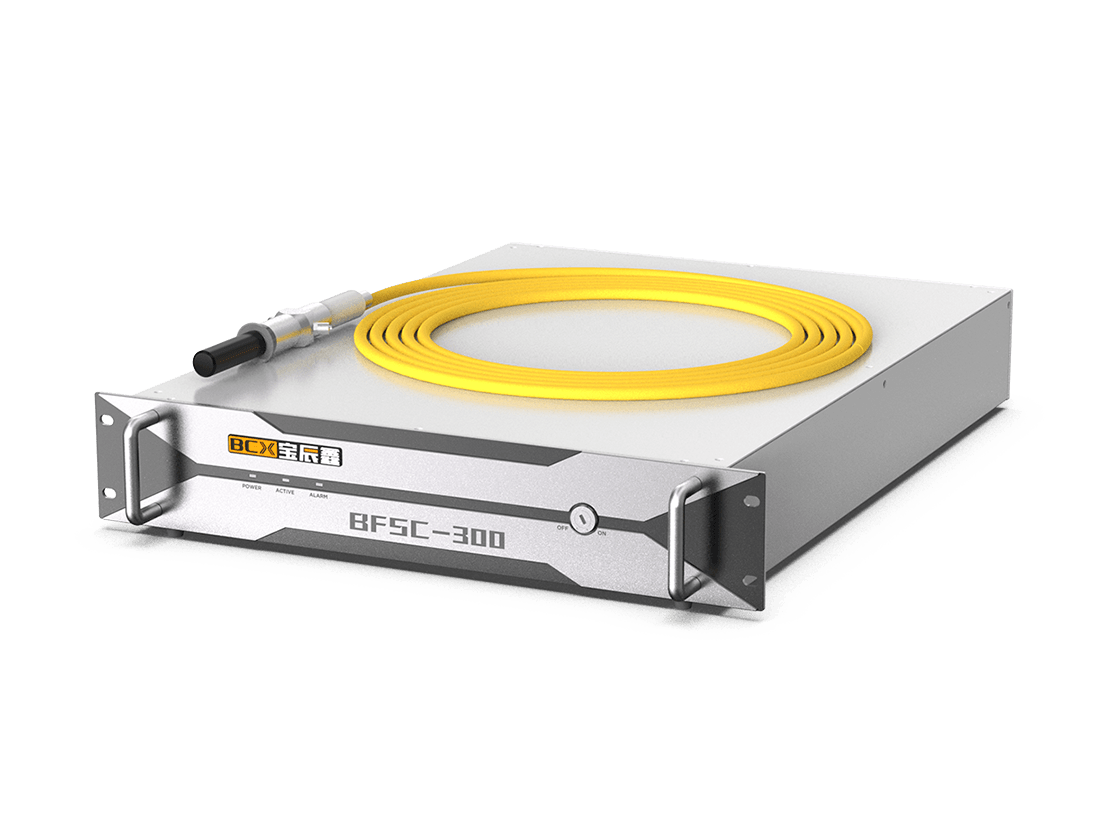

BCX Laser's BFSC 100-300M continuous fiber laser is water-cooled with a special 2μm wavelength, ideal for processing plastics and other non-metals. lt features high beam quality, high conversion efficiency, stable performance, compactness, and easy integration, meeting large-scale application needs.

Product consultation

Product Features

Strong Capability for Non-Metal Material Processing

With a wavelength of 2um, it offers enhanced processing capabilities for non-metal materials such as plastics. lt is widely applicable in cutting, welding, and 3D printing of non-metal materials like plastics, wood, leather, and microfluidic chips, as well as in scientific research.

Stable and Reliable Product Performance

High beam quality and stable output performance ensure superior processing results.

Lightweight Design for Easy Expansion and Integration

The compact and lightweight design, combined with rich interfaces and flexible output characteristics, greatly facilitates integration into equipment and systems.

Optical characteristic
Working mode	Continuous/pulse
Polarization state	Random
power	300 ~ 6000
Power regulation range	10-100%
Central wavelength	1080nm
Spectral bandwidth (3dB)	5nm
Beam mass M²	1.3	1.2	1.2	1.6
Beam quality BPP	1.5mm * mrad	1.5mm * mrad	1.6mm * mrad	3.6mm * mrad
Modulation frequency	20KHz	10KHz	10KHz	10KHz
Indicated red light power	150 mu w	200 mu w	200 mu w	200 mu w

Output cable parameters
Output armor length	10m	15m (customizable)	15m (customizable)	20m (customizable)
Output fiber core diameter	50μm (14, 20, 25, 30, 100 optional)	14, 20, 50, 100μm (customizable)	14, 20, 50, 100μm (customizable)	50, 100μm (customizable)
Bending radius of the optical fiber	200mm
Output mode	Standard QBH

Electrical parameter
Operating voltage	240VAC	240VAC	440VAC	440VAC
Input power	1.2 ~ 2 kw	From 4 to 3.5 kw	6.3 ~ 8.5 KW	11.5 ~ 6.8 KW

Other parameters
Operating ambient temperature	10 ~ 40 ℃
Relative humidity of the working environment	10 ~ 80 ℃
Cooling mode	water-cooling
Storage temperature	- 10 ~ 60 ℃
Overall size	427.5537143 (W×D×H) mm(without handle)	482.6×578×88 (W×D×H) mm(without handle)	482.6×730×105 (W×D×H) (without handle)mm	482.6×780×133 (W×D×H) mm(without handle)
